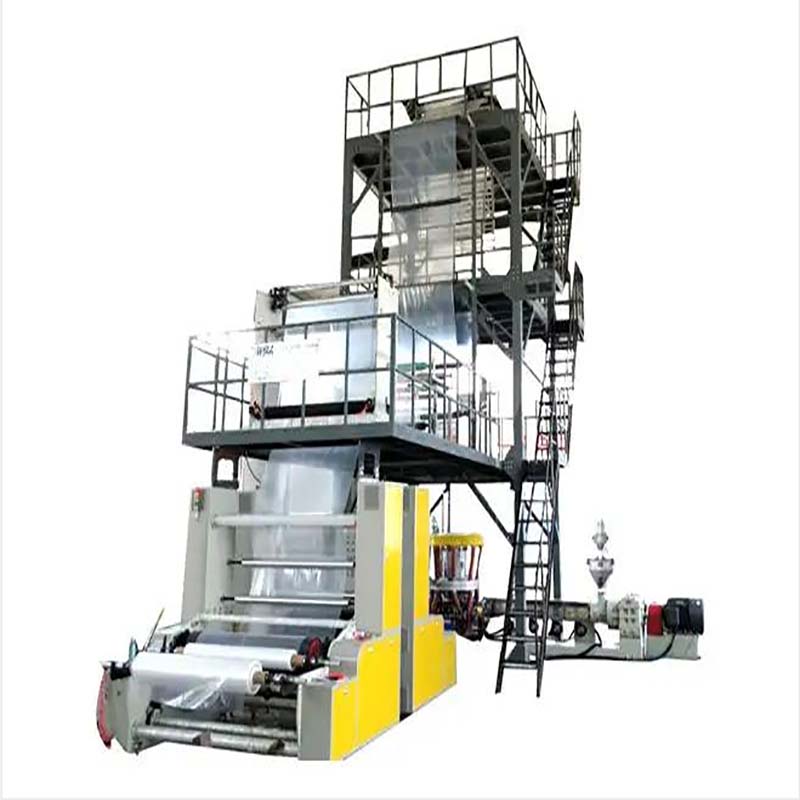

Packaging Film Blowing Machine

It is fit to puff high density and low density polyethylene industry film, farm-oriented mulch film. The cylinder and the screw stems of the extruder are made of high-quality alloy steel with optimum hardness and strong corrosion resistance after nitrogen treatment and precision finishing. It is double rolling and account the meter automatically.

It is the plastic film blowing machine for blowing PE(HDPE, LDPE, LLDPE), film; etc.
Which kinds of film are widely used for packing liquid, industrial products, garments and textile; for making plastic bags, like T-shirt bag, flat bags, garbage bags etc.

Contact Now

Product Details

CHARACTERISTIC
1. Frequency inverters control main motor and traction motor.
2. Material of screw and barrel: 38CrMoAl-A after nitrogen treatment.
3. Gear box: HARD teeth gear surface, casting alloy piston, high precise grinding, long life.
4. Die material: Alloy steel material, hard chrome-plating, mirror surface channel.

5. Double digital display temperature controller in the die head.
6. Machine passed CE certification, and our factory passed ISO certification, quality guaranteed.

Packaging Film Blowing Machine

OPTIONAL

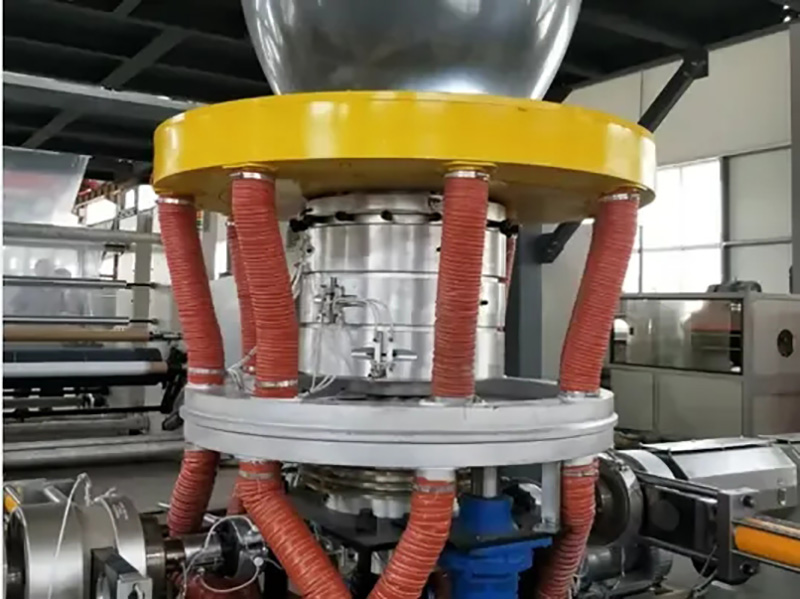

1. Rotary die head

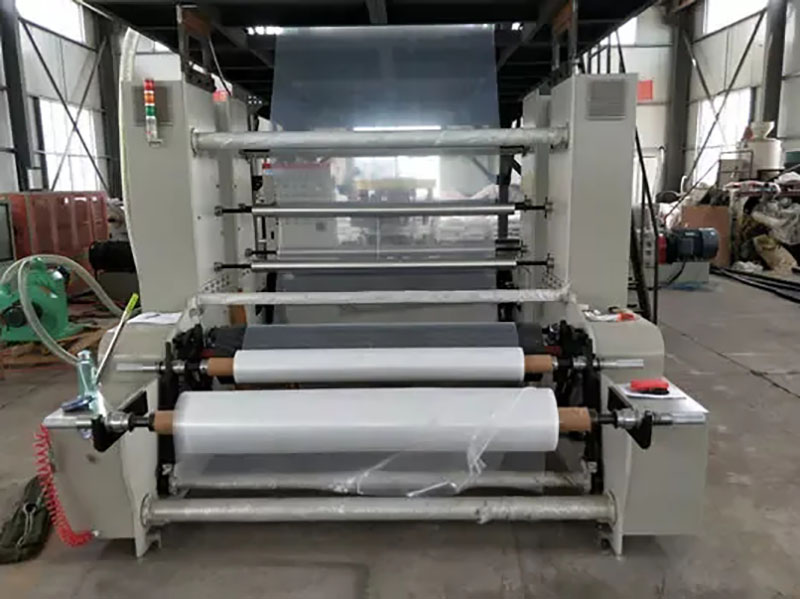

2. Double stations winder

3. Lifting traction

4. Automatic PLC film roll change winder

5. Auto material feeding

6. Corona treatment

7. Filter changer system

Packaging Film Blowing Machine

Main Technical parameters:

Model	Unit	SJ-45/55/45-1600	SJ-55/65/55-1800	SJ-65/75/65-2200	SJ-75/80/75-2800
Film thickness	mm	0.01-0.12
Max film width	mm	1200	1600	2000	2600
Max output	kg/h	200	300	350	480
Die diameter	mm	Φ250	Φ350	Φ450	Φ600
Motor power	kw	18.5/30/18.5	30/37/30	37/55/37	55/75/55
Winder	Automatic back to back surface friction winder
Demension	mm	8500x6500x8500	9500x6800x9500	11000x7000x9500	11000x7500x11500
